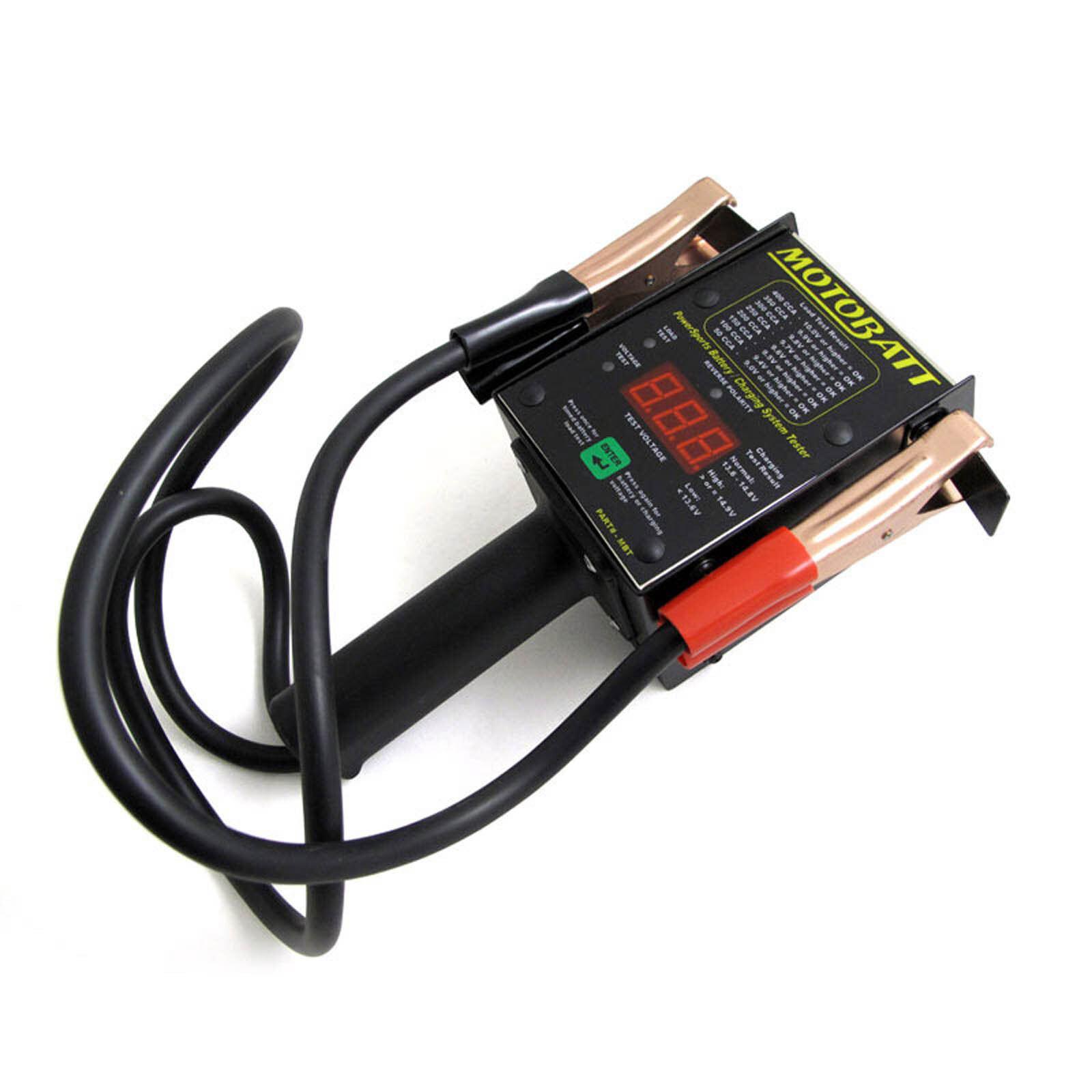

MOTOBATT 12V TESTER MBT FIXED LOAD

Founded in 2008 Motobatt is a manufacturer of premium Powersportsbatteries battery chargers and battery related accessories. Motobatt isthe creator and holds patents all over the world for the Motobatt 4terminal battery that facilitates flexible battery installation across awide variety of vehicles while maintaining an OE likefit.

Features:

• Durable metalhousing
• True 125A load test
• Microprosessorcontrolled
• Reverse polarity indication
• Built-in wallhanger

Specifications:

• Applicati12V Battery & 12V Charging Systems
• Operating Range: Up to 400CCA
• True Loading Capacity: 125 Amp
• Voltmeter: 0 to15V
• Test Type: Timed w/ auto shut off
• Display: 3Character LED & 3 LED indicators
• Lead Set: 64cm (25 )motorcycle battery clamps
• Dimensions: 239 x 86 x 86mm (9.4 x3.4 x 3.4 )

Motobatt chargers utilise Motobatt’sunique 9 Stage Charging and Maintenance Process.

Qualification Phase:

Initially ensures that the battery isin good condition prior to launching charge processing. As a safety measurecharge process will not begin if the battery is below 2V.

Battery Rescue Phase:

Motobatt Battery Rescue starts ifthe battery voltage has risen unusually high in the early portion of there-charge cycle. This is usually caused by plate sulfation. Once thebattery rescue phase has succeeded in getting the battery to accept power normal battery charging will begin.

Soft StartPhase:

Soft Start is used when the charger has detected abattery at a very low initial state of charge. Voltage and current aredelivered at specified rates to help the battery to recover prior toentering Pulse charge mode.

Pulse ModePhase:

Motobatt Pulse mode provides a high-
