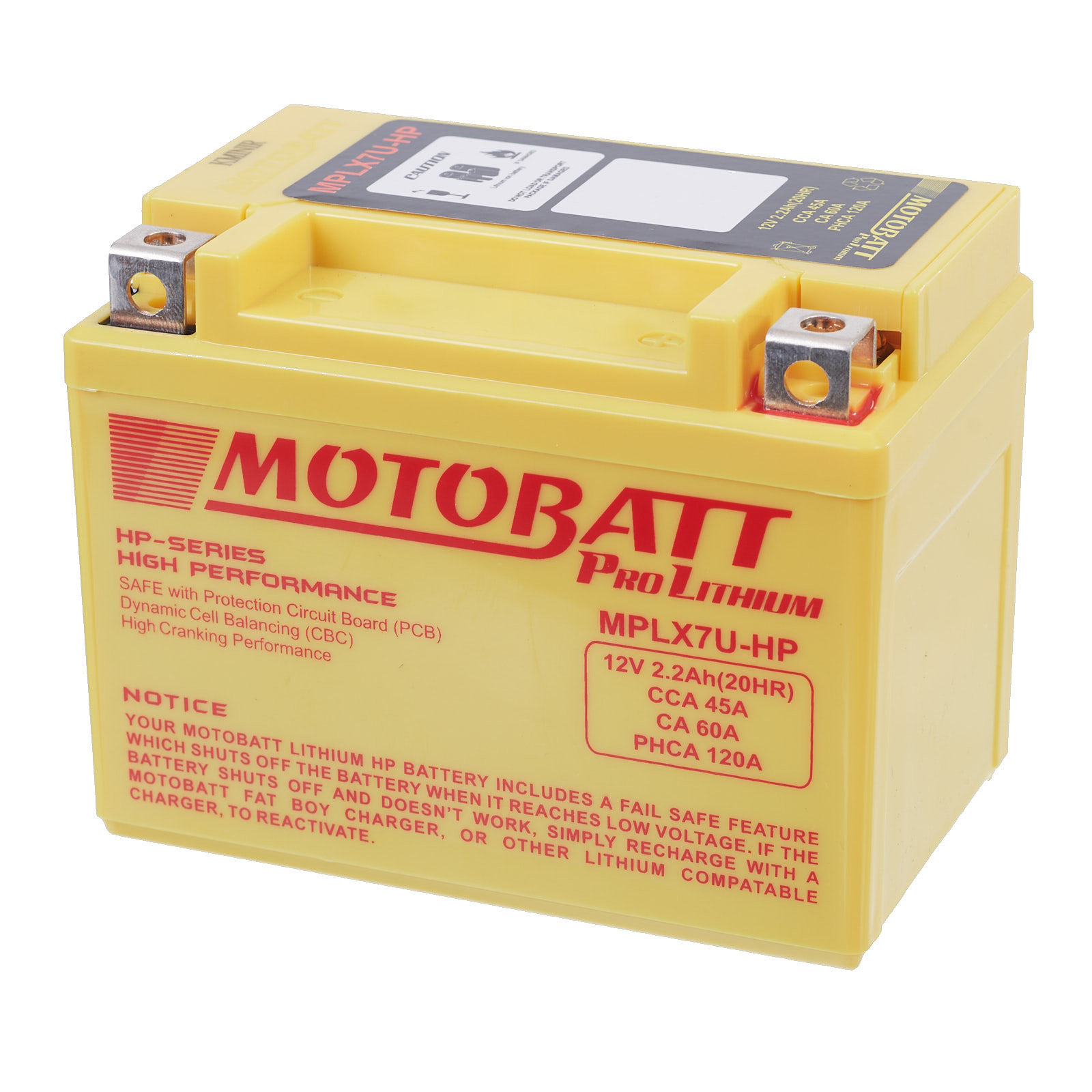

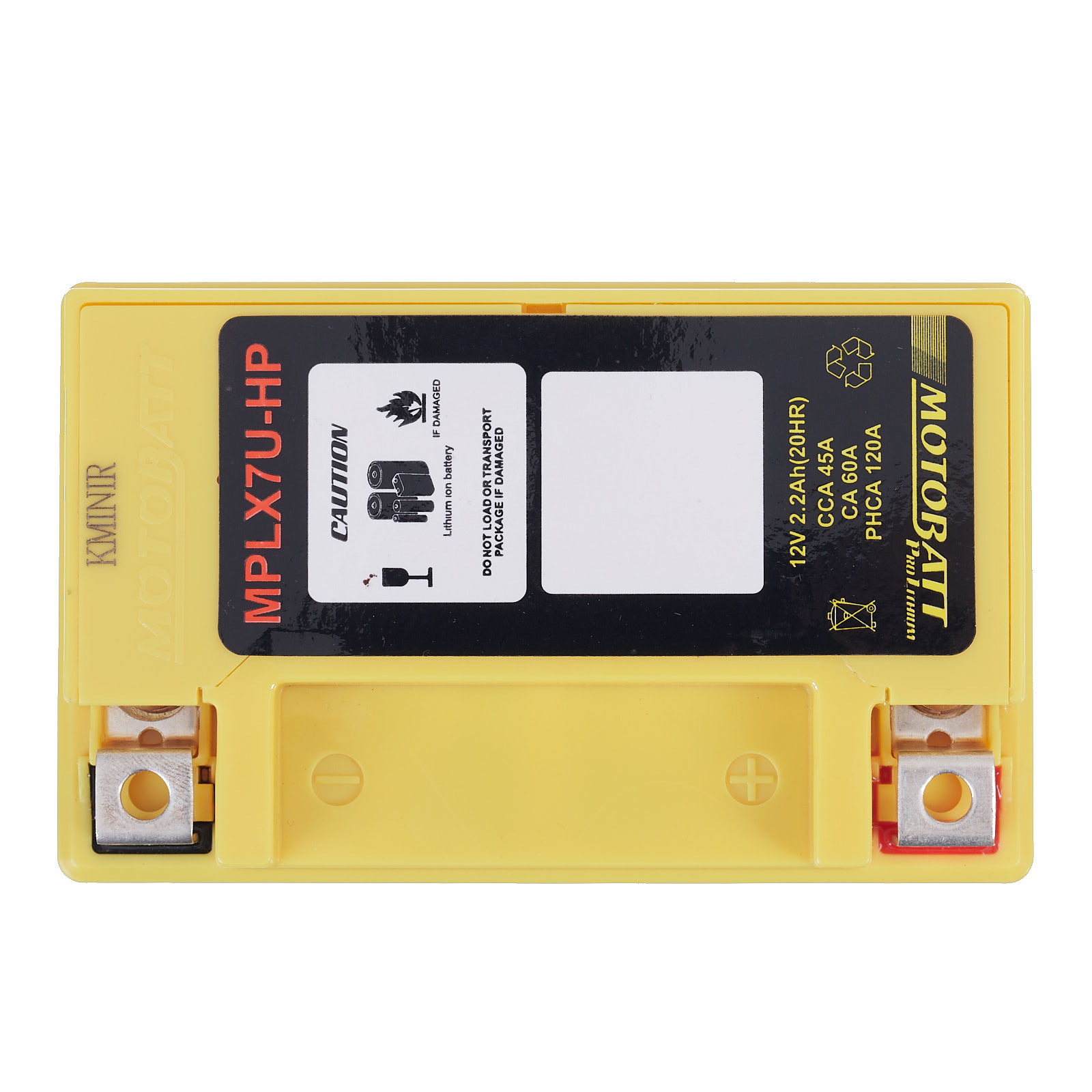

MOTOBATT PRO LITHIUM BATTERY - MPLX7U-HP

Specifications:

Voltage: 13.2V
CCA: 165
Capacity: 2.2Ah
Weight: 0.55kg
Dimensions: 114 x 70 x 87mm
Terminal Height: 127mm (5)
Terminals: 2 M5x2.5 (MPT1)
Screws: 4 M5x7 (2x MPS1)
Allen Wrench: 1 3x3(MPAK1)
Terminal Caps: 2 11x5.5 (MPC1)
Spacer: None

Replaces Motobatt Quadflex: MBTX4U MBTZ7S MBTX7U
Replaces Yuasa:YTX4L-BS YTZ7S YB4L-A YB4L-B YT4L-BS YTX5L-BS YTX7L-BS YTZ5S YTZ6S YTZ8V

Pro Lithium

Motobatt Pro Lithium batteries are around 3x lighter than conventional lead-acid batteries yet they produce even greater cranking performance ideal incompetitive environments. This additional power translates into the ability toprovide strong starting currents that are required for reliable repeated startsat a wider range of temperatures than lead-acid batteries. Due to their very lowidle discharge Motobatt Pro Lithium batteries can retain charge after more thana year of inactivity. Pro Lithium batteries have a high life expectancy withover 2000 cycles compared to around 500 for a lead-acid battery while alsoboasting a short recharge time supplying up to 90% charge after

• Motobatt Lithium batteries are around 3 times lighter than lead-acidbatteries
• Designed to produce higher cranking performance for competitionenvironments
• Strong Starting Current Reliable repeated start opportunities over a widevariety of conditions
• Very Low “self-discharge” while in storage
• Fast Recharge time 6 minutes for up to 90% charge

Cell Balancing Circuit (CBC)

Motobatt’s Cell Balancing Circuit or CBC for short gives their range ofPro Lithium batteries an edge over the competition. The dynamic cell balancingprovides the ultimate in-cell control giving superior performance life span andsafety.

Each Motobatt Lithium battery contains a unique CBC which always controls the
