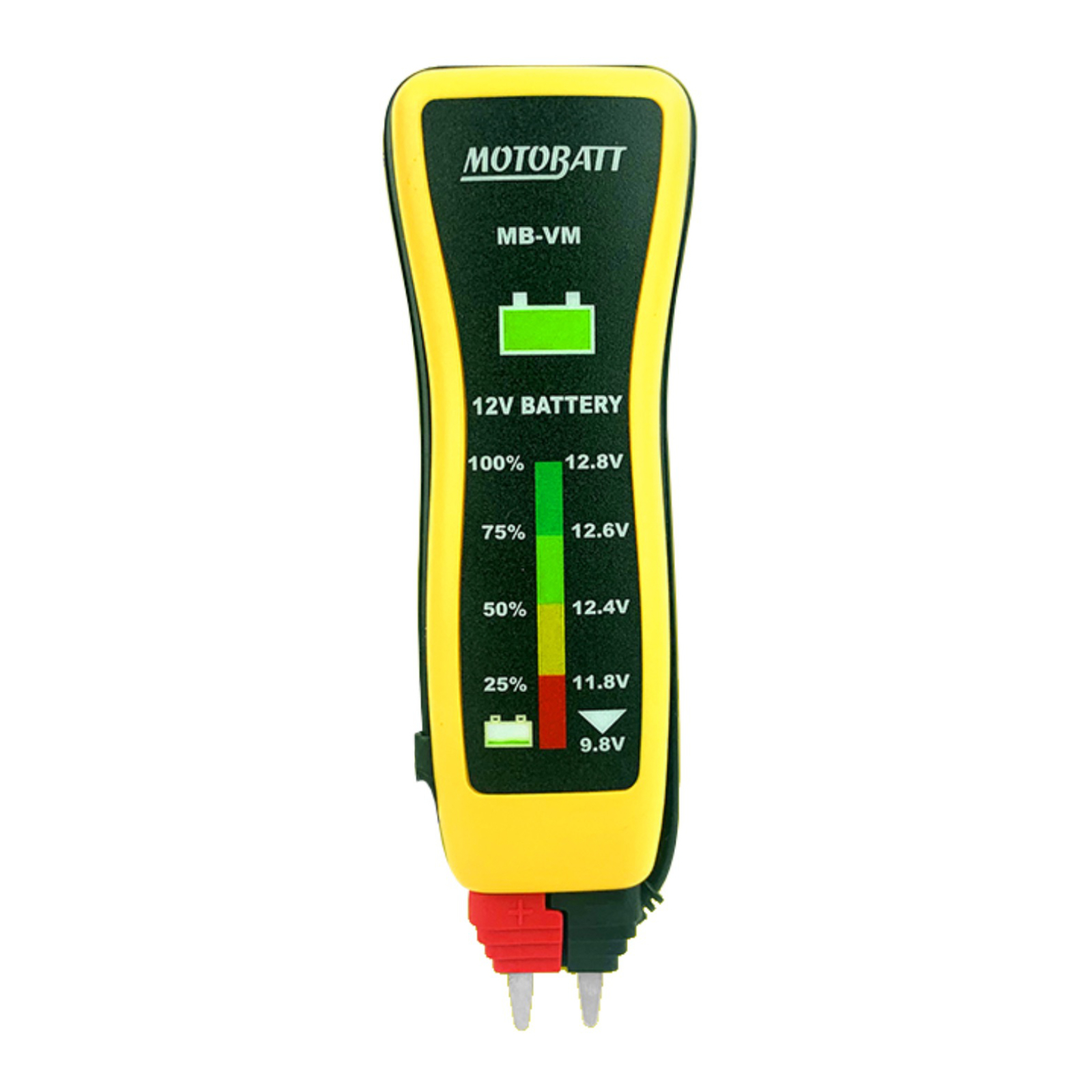

MOTOBATT TESTER 12V VOLTMETER POCKET

Founded in 2008 Motobatt is a manufacturer of premium Powersports batteries battery chargers and battery related accessories. Motobatt is the creator andholds patents all over the world for the Motobatt 4 terminal battery thatfacilitates flexible battery installation across a wide variety of vehicleswhile maintaining an OE like fit.

Features:

• Great mobile voltage testing
• Slim compact design
• Compatible with 12V batteries
• Provides quick and easy voltage readings

Specifications:

• Application: 12V Batteries
• Test Range:
  • Battery Voltage:
  • 25% - 9.8 to 12V
  • 50% - 12V to 12.4V
  • 75% - 12.4V to 12.6V
  • 100% - 12.6V to 13.8V

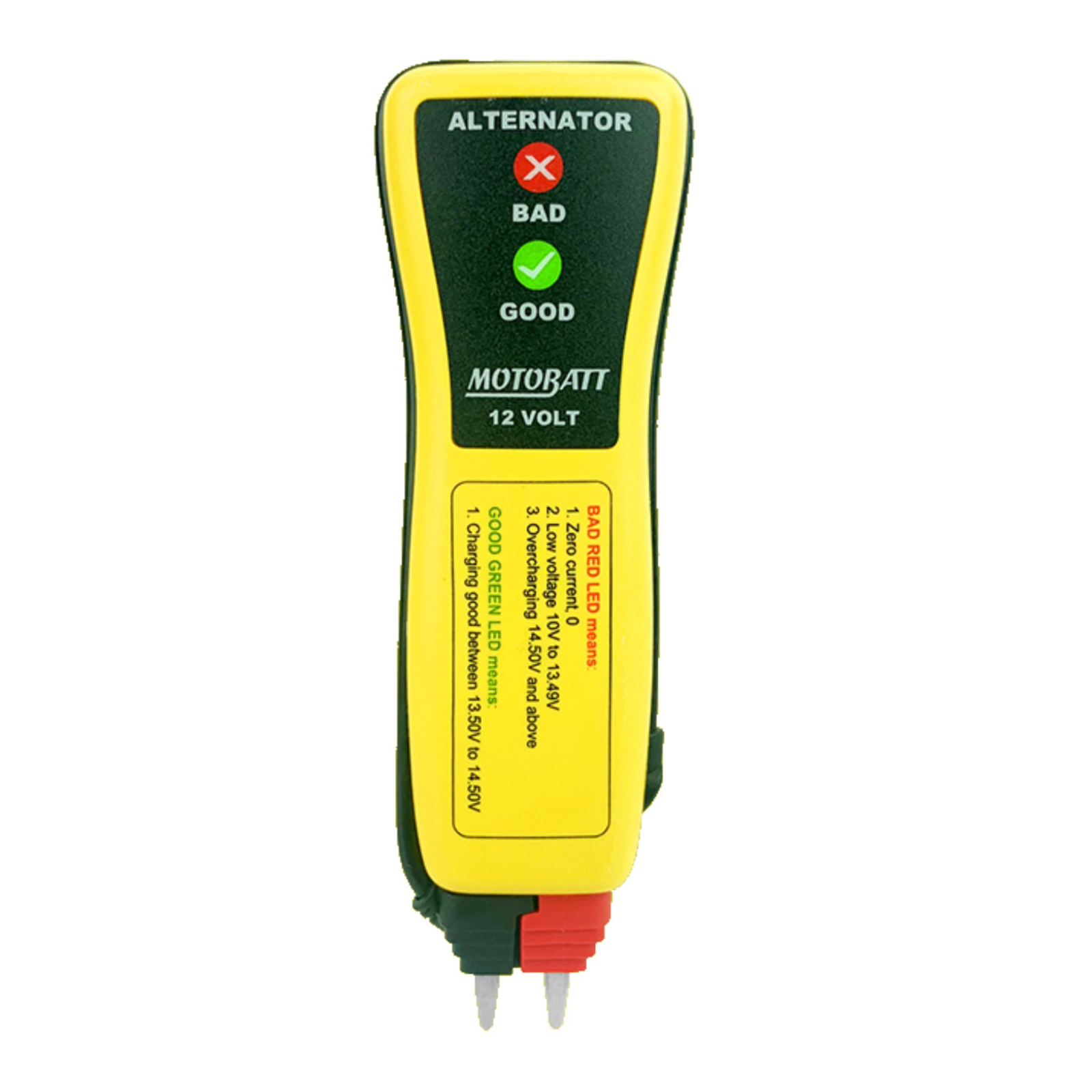

  • Charging Voltage:
  • Good - 13.8V to 14.7V
  • Bad - 14.7V and up

Motobatt chargers utilise Motobatt’s unique 9 Stage Charging andMaintenance Process.

Qualification Phase:

Initially ensures that the battery is in good condition prior to launchingcharge processing. As a safety measure charge process will not begin if thebattery is below 2V.

Battery Rescue Phase:

Motobatt Battery Rescue starts if the battery voltage has risen unusuallyhigh in the early portion of the re-charge cycle. This is usually caused byplate sulfation. Once the battery rescue phase has succeeded in getting thebattery to accept power normal battery charging will begin.

Soft Start Phase:

Soft Start is used when the charger has detected a battery at a very lowinitial state of charge. Voltage and current are delivered at specified rates tohelp the battery to recover prior to entering Pulse charge mode.

Pulse Mode Phase:

Motobatt Pulse mode provides a high-frequency pulse charge to help the newlyrecovered battery to continue to accept charge as it enters the reconditioningphase.

(MBZTVM)
