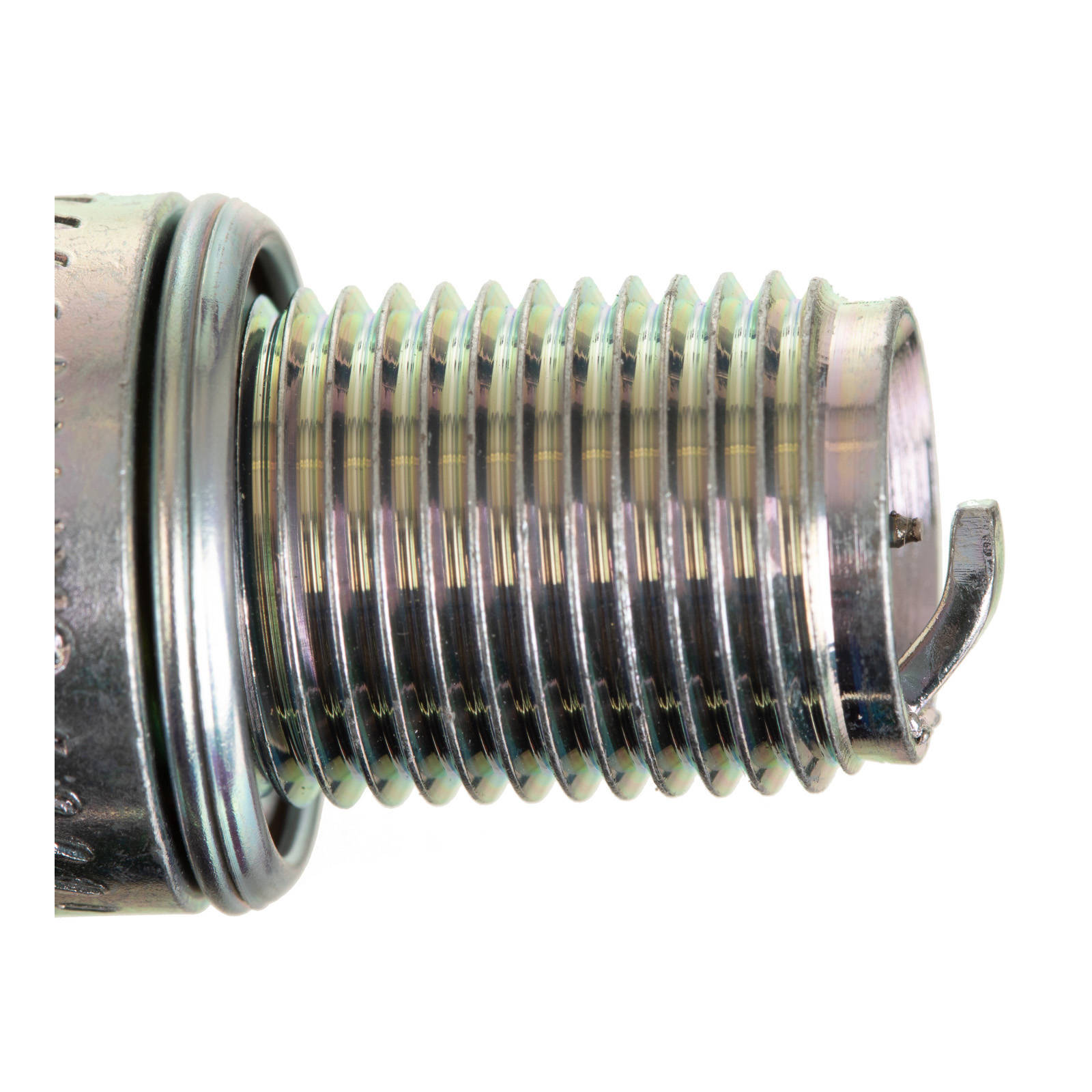

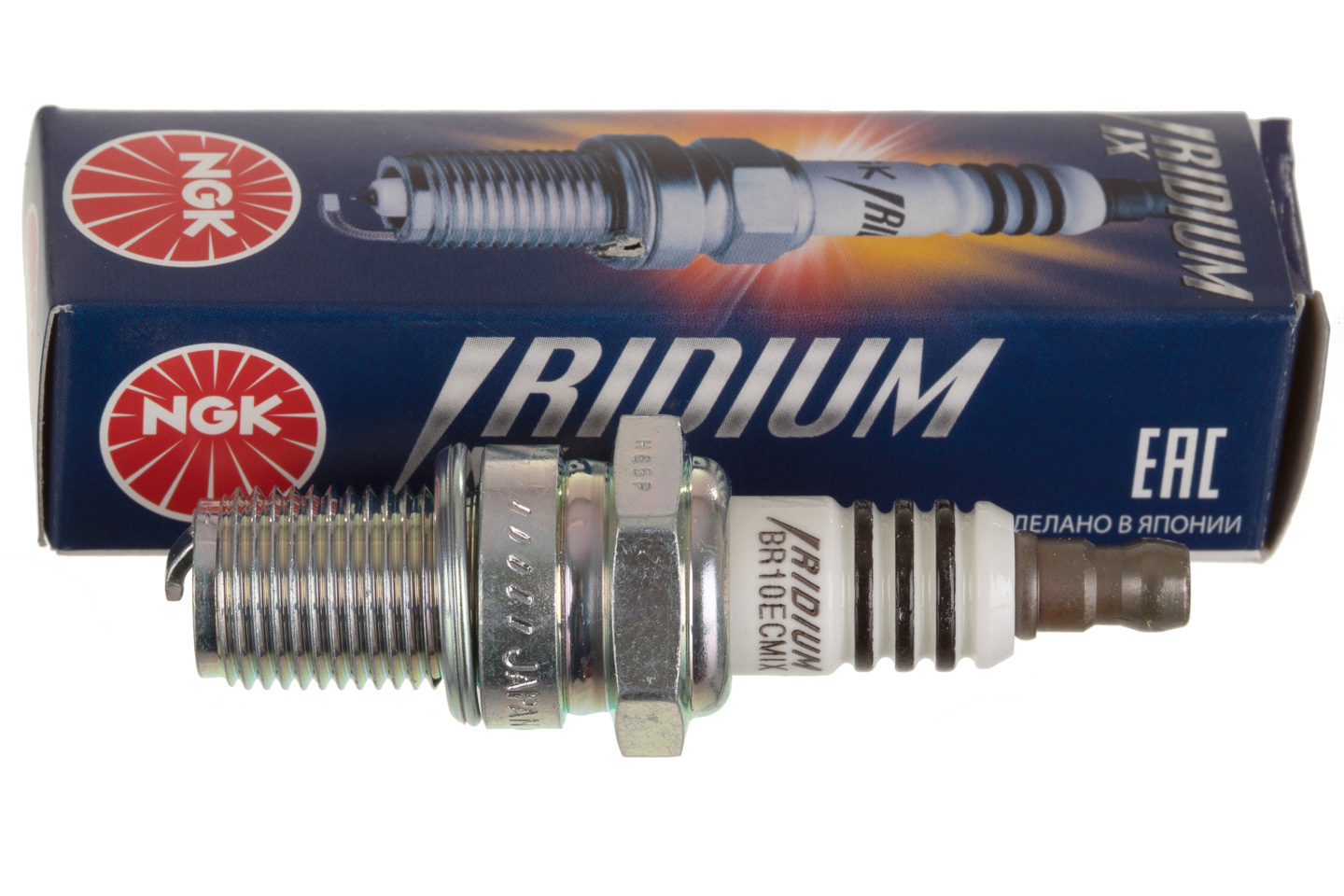

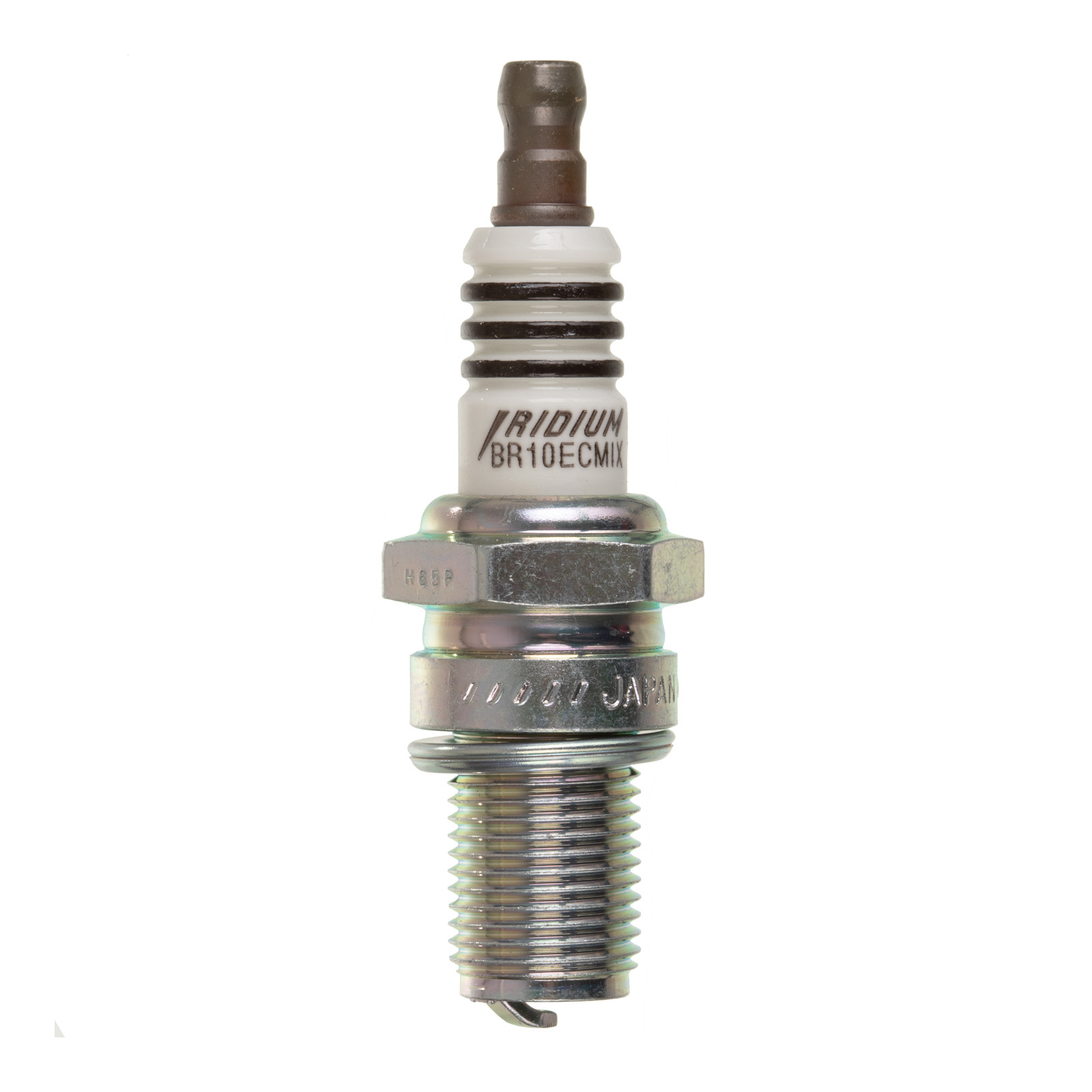

NGK SPARK PLUG - BR10ECMIX

NGK have over 80 years of experience in spark plug manufacturing and arethe world leader in spark plug technology. NGK has an extensive range ofspark plugs each with their own unique characteristics specificallyengineered to its application and designed to suit a broad range ofmotorcycles ATVs & UTVs in Australasia. With NGK's dedication toquality outstanding reliability and state of the art manufacturingtechniques you can rely on your NGK Spark Plugs.

Don’t justask for a spark plug insist on NGK.

The improved throttle response superior anti-fouling and high-ignitability make IridiumIX^® ideal for the performance enthusiast.Iridium’s extremely high melting point is perfectly suited totoday’s high-temperature engines delivering outstandingacceleration fuel efficiency and durability.

• Fine iridiumtip ensures high durability and a consistently stablespark
• Trivalent metal plating for superior anti-corrosion andanti-seizing properties
• Outstanding acceleration high fuelefficiency anddurability

Shell

• Thread Size:14mm
• Thread Pitch: 1.25mm
• Seat Type:Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm(3/4 )
• Hex Size: 21mm (13/16 )
• Terminal Type:Solid
• Overall Height: Bantam
• Gap: 0.8mm(0.031 )

CentreElectrode

• Material: Iridium
• Type: FineWire
• Size: 0.6mm
• Projection:Non-Projected

GroundElectrode

• Material: Nickel
• Type:Low-Angled
• Shape: Taper Cut
• Quantity:1

Specifications

• HeatRange: 10
• Resistor: Yes
