REGINA 520 CHAIN ZRP SPORTBIKE SERIES 120 LINKS

Find In Store

Archerfield QLD

Unavailable

Cnr Granard and Beaudesert Roads, Archerfield, QLD, 4108

1300 100 009

Dandenong South VIC

Unavailable

Unit 3, 37 Princes Highway, Dandenong South, VIC, 3175

1300 100 009

Warehouse

Unavailable

Please allow 2-5 business days for dispatch from our warehouses. If you are ordering multiple products, they may be shipped from different warehouse locations. All products, per order will be dispatched together as a single order.

Description
Specifications

Specifically designed for applications on high powered bikes, these chains are able to offer exceptional performance thanks to the patented Z-Ring. Assembled with high alloy steel pins and plates, solid bushings and rollers, shot-peening of plates, pins and rollers and prestressed for performance enhancement, assuring excellent resistance to mechanical stresses of the latest superbikes.

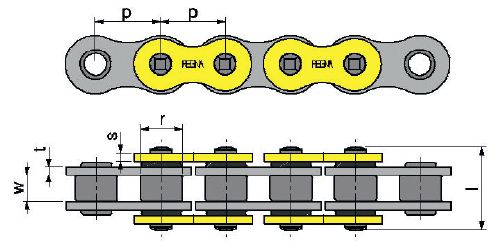

Chain Ref	520
Reina Ref	135 ZRP
Pitch (p)	15.875mm
Pitch (p)	5/8in
Inner Width (w)	6.35mm
Inner Width (w)	1/4in
Roller Ø (r)	10.23mm
Plate Thickness (t)	2.2mm
Plate Thickness (s)	2.2mm
Pin Legnth (l)	21.3mm
Weight	1.11kg/m
Weight	1.76kg/100 links
Weight	3.89Lbs/100 links
Avg. Tensile Strength	36.000 N
Avg. Tensile Strength	8093Lbs
Seal	ZR
Colour	Gold
Connecting Link	19+44
