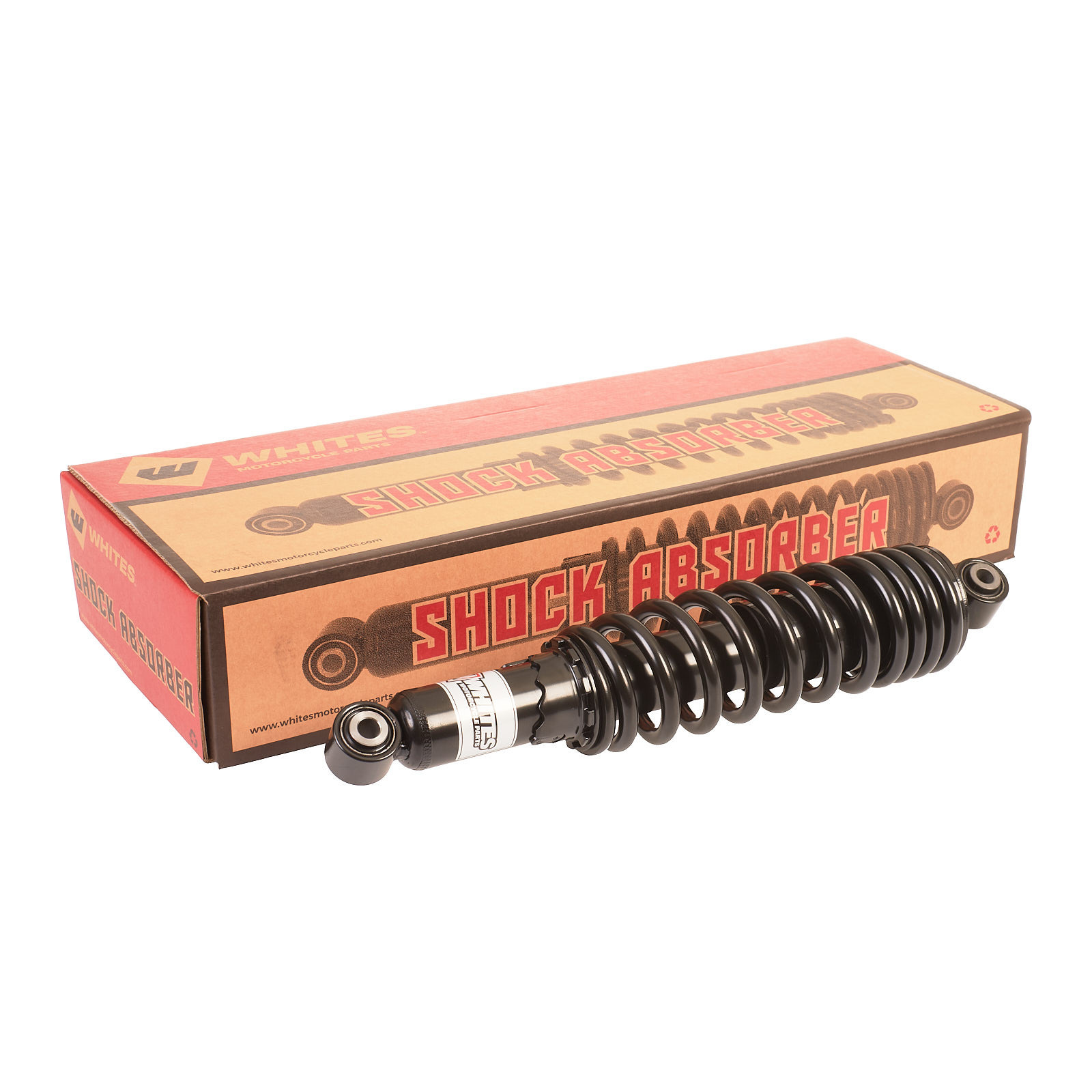

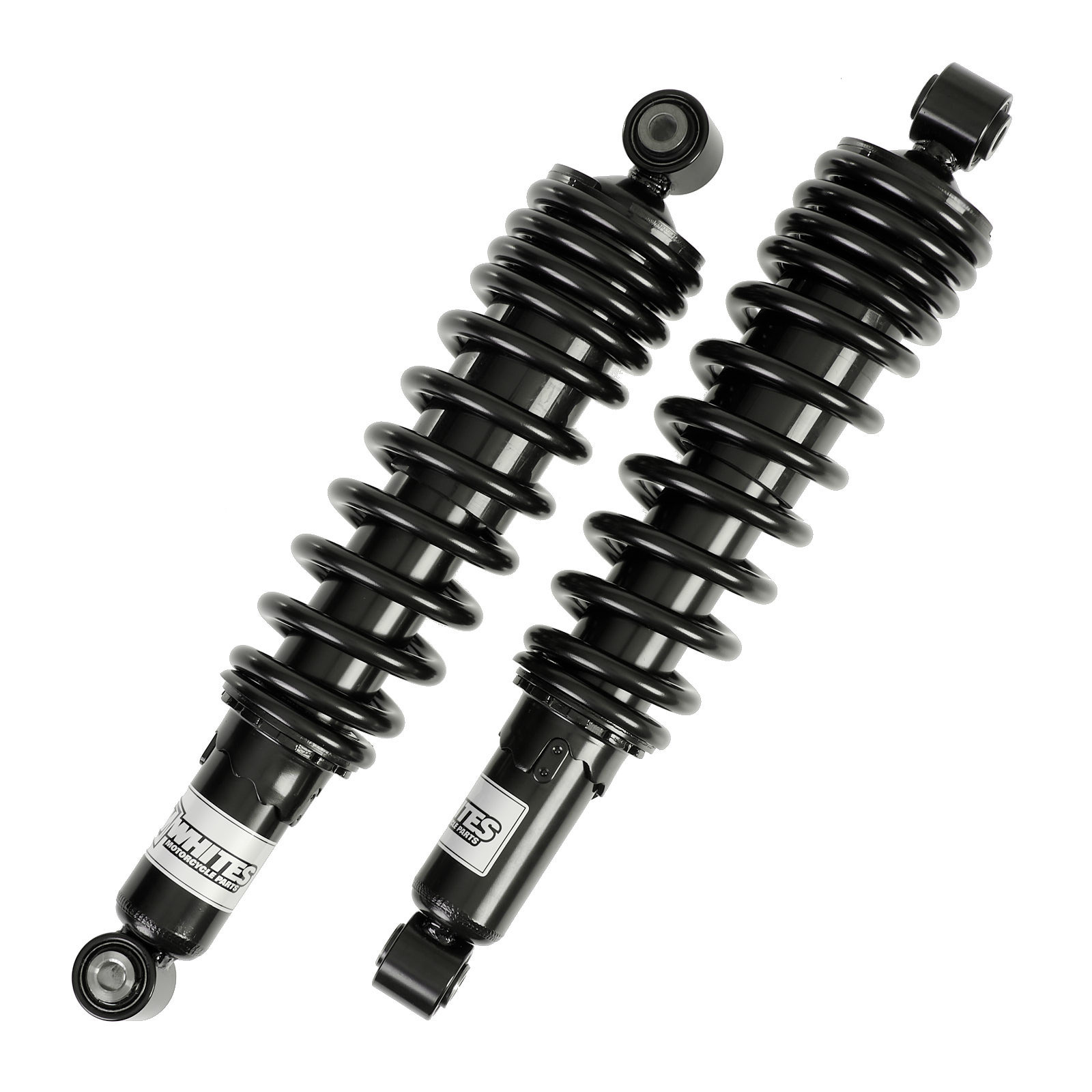

WHITES FRONT SHOCK ABSORBERS - YAMAHA GRIZZLY 550/700 (PAIR)

Whites extensive range of ATV shocks are perfect for servicing yourfour-wheeled machine ATVs work and play in the harshest environments andif your OEM shock is broken bent or just worn out Whites range of ATVshocks to suit Honda Suzuki and Yamaha are perfect for you. Sold in pairsand available for both the front and rear of most common ATVs. Manufacturedwith a steel construction for exceptional strength and durability your newshock will last the distance while the upgraded damping provides acomfortable ride.

Fits 09-14 Yamaha Grizzly 550 - Front 07-13Yamaha Grizzly 700 - Front
Steel construction shock body
Upgradeddamping provides an extra comfortable ride
Replaces OEM Part:3B4-23350-01-00 3B4-23350-00-00 1HP-F3350-00-00 28P-23350-00-00
Sold as a pair

Extended Length: 360mm
Compressed Length:283mm
Top Eyelet: 10x32mm
Bottom Eyelet: 10x30mm
Shaft OD:12.5mm
Damper Diameter: 38mm
Spring OD: 62.6mm
SpringDiameter: 8.9mm
