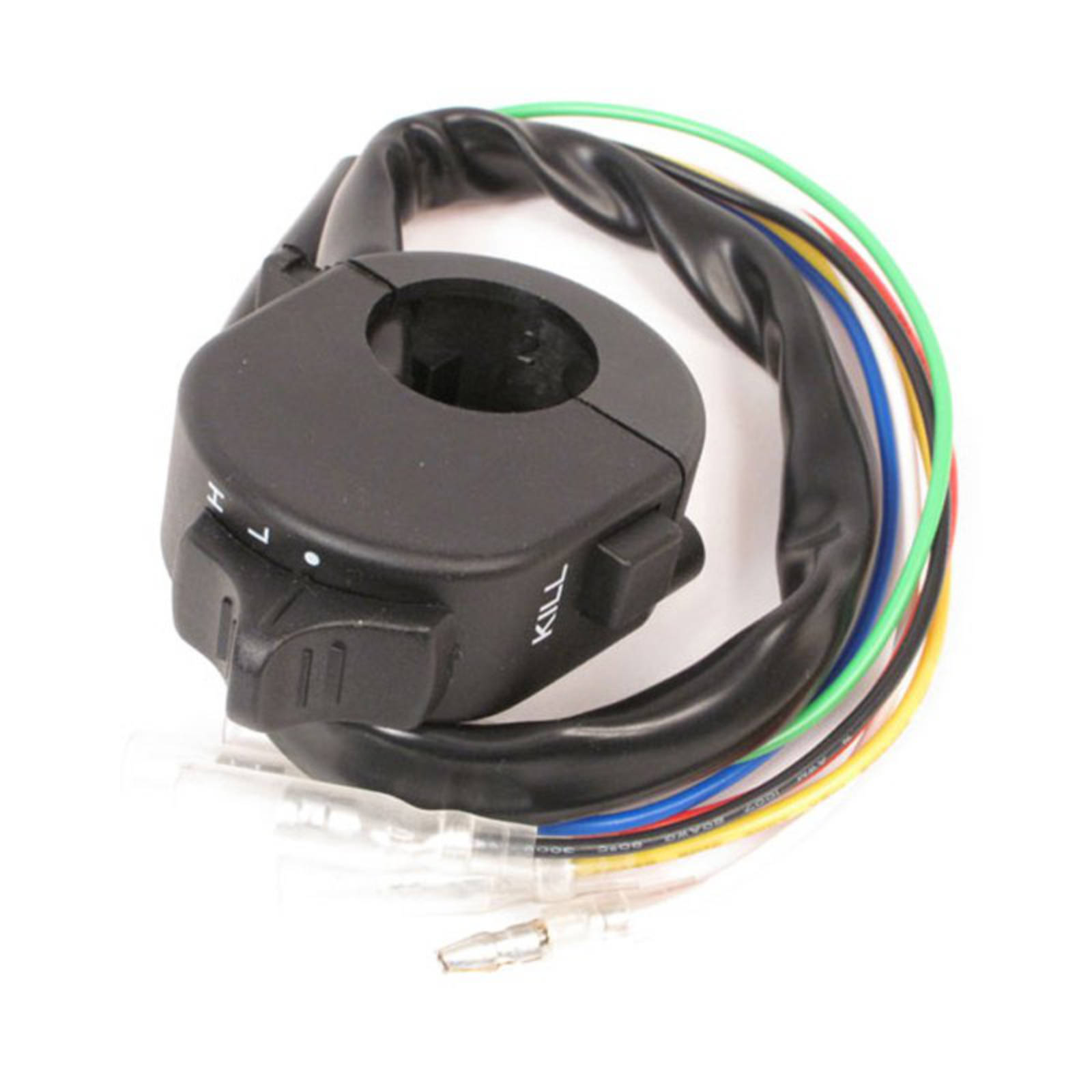

WHITES SWITCH BLOCK HEADLIGHT ON-OFF/HI-LO (20.7MM) - BLACK
Boasting a sleek - BLACK and slim design the Whites Headlight Switch Blockis a multi-purpose handlebar switch including a High Low and Off settingfor your headlight along with a kill switch. The switch block is pre-wiredwith an 18 length and bullet terminals for a quick and easy installationand is compatible with 7/8 handlebars. The block is only 20mm wide and42mm high making it the perfect replacement for that bulky OEM block onyour daily commuter or one of custom machine.
Pre-wired 18 wirewith bullet terminals
Compatible with 7/8 handlebars
Full wraparound design
Three stage headlight switch high/low/off
Includeskill switch
Voltage Range - 11v - 15v
Max Amps - 2.5 amps
Material: ABS Plastic
Width: 20mm
Height: 42mm
Wiring Configuration:
Red: Positive
Black: Earth
White:Kill Switch
Green: Low Beam
Yellow: High Beam
Blue: ParkingLight
(SWHSBHHL1)
SKU | SWHSBHHL1 |
Barcode # | 9420060922127 |
Brand | Whites Motorcycle Parts |
